Oclaro 700 Build

[IMG]Image may be NSFW.

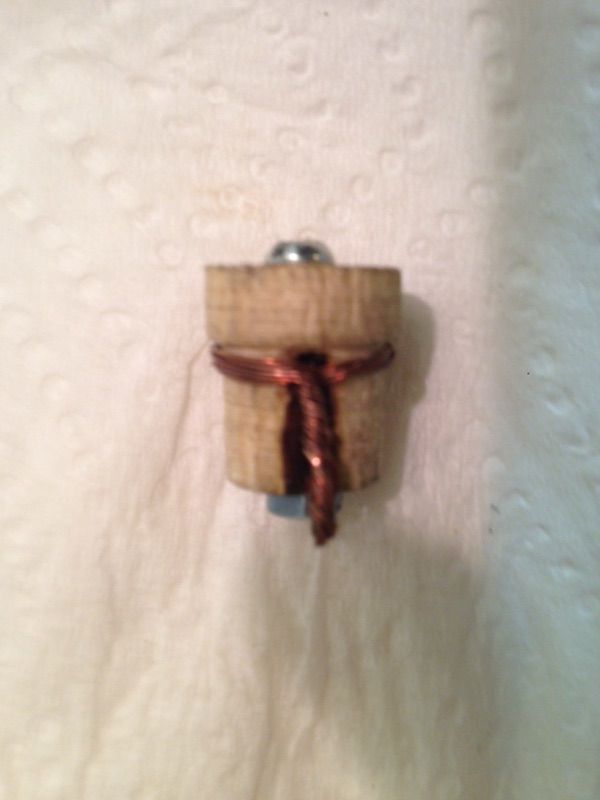

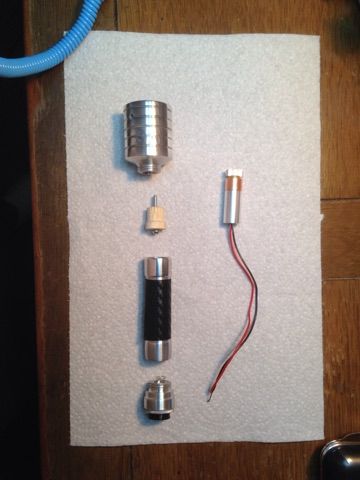

Clik here to view.[/IMG]Bought a really nice looking host off ElectricPlasma, took one 14500. So I decided to make a red laser. When to DTR and bought 700 with a Nano driver and a g2 lens. Got all the fixing so onto the build.[IMG][IMG] First I had to prepare the contact board, decided to burn a little chanel in the side to give the ground wire a little roomhttp://i682.photobucket.com/albums/vv187/BobMc001/IMG_0865_zpsunq1pogl.jpg[/IMG][/IMG]Wraped a multi-strand wire real tightly around the contact board/plughttp://i682.photobucket.com/albums/vv187/BobMc001/IMG_0868_zpshg6pqdzc.jpg[/IMG][/URL][/IMG]Put some thermo compound on the module and slid her in place[IMG]Image may be NSFW.

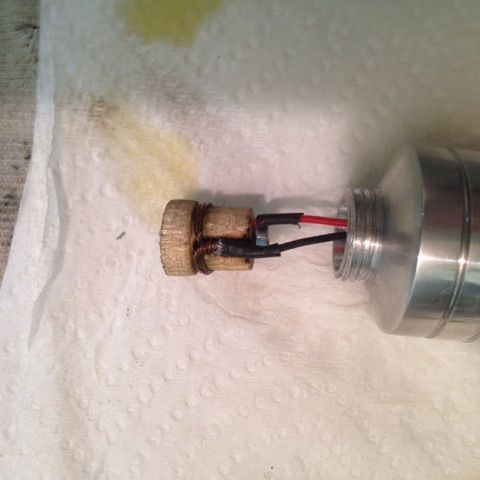

Clik here to view.[/IMG]Than I soldered and shrink tubed the the positive and negative to the contact board[IMG]Image may be NSFW.

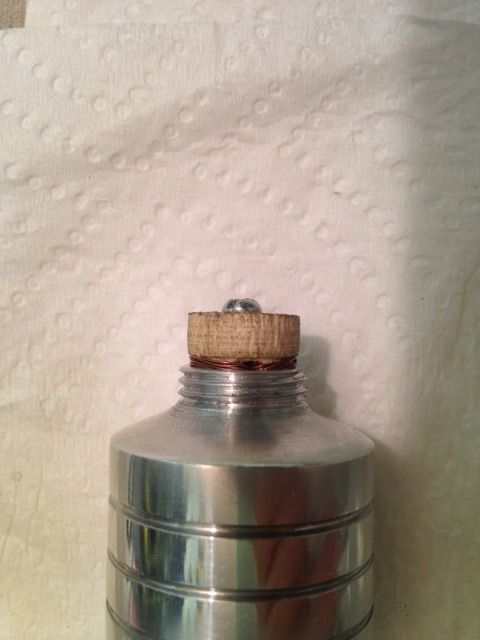

Clik here to view.[/IMG] and push her in place[IMG]Image may be NSFW.

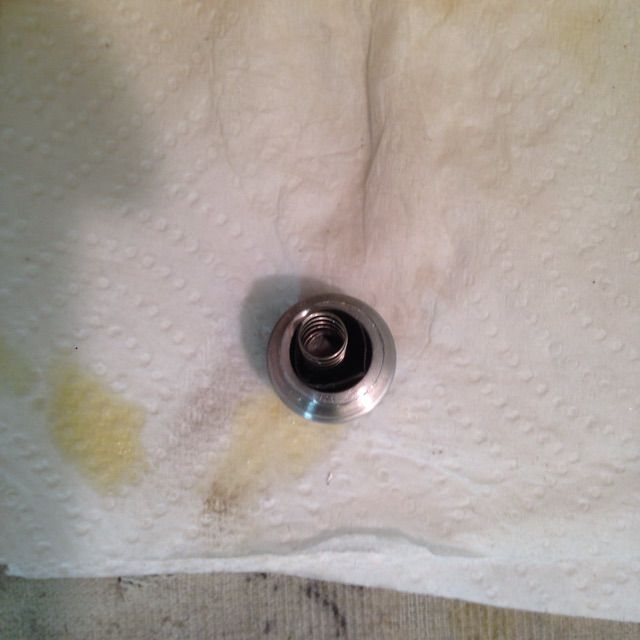

Clik here to view.[/IMG]than I could not get the spring to stay in the middle of the tail cap so I found a piece of shrink tube that was just about the same size as the opening and cut it to fit. Which should keep the spring from grounding out to the host and turning on the laser.[IMG]Image may be NSFW.
Clik here to view.[/IMG] time to put it all together ( say a little prayer) put the battery in and give it a try.[IMG]Image may be NSFW.

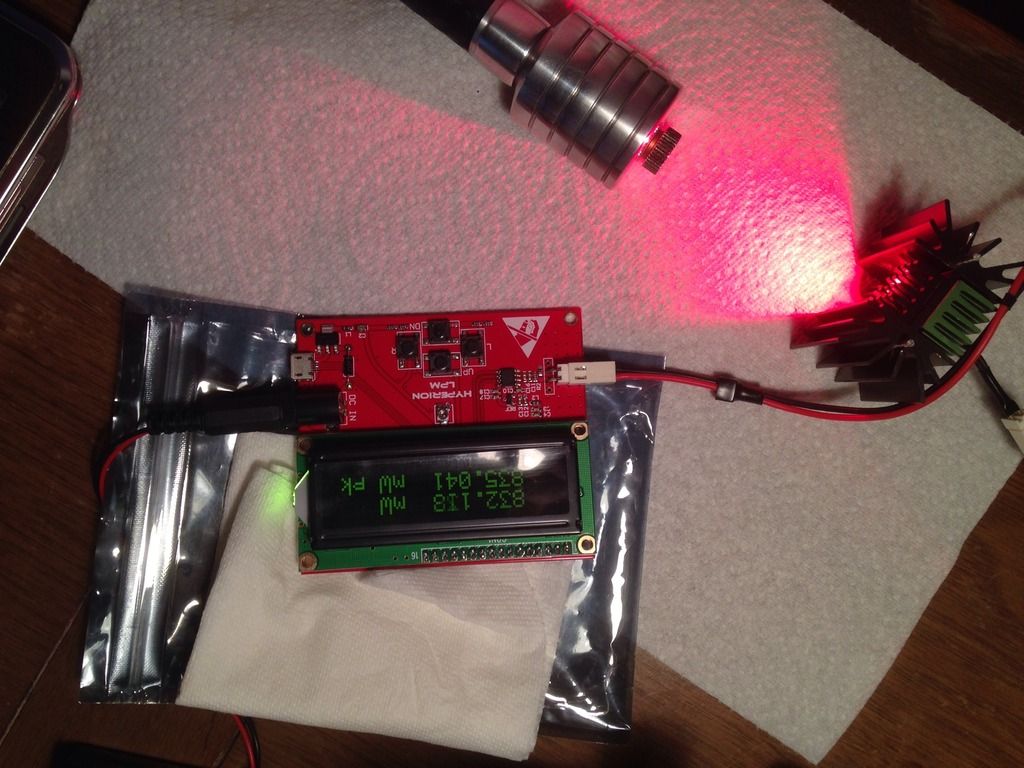

Clik here to view.[/IMG] Bingo!! put this on a LPM and see what we got.[IMG]Image may be NSFW.

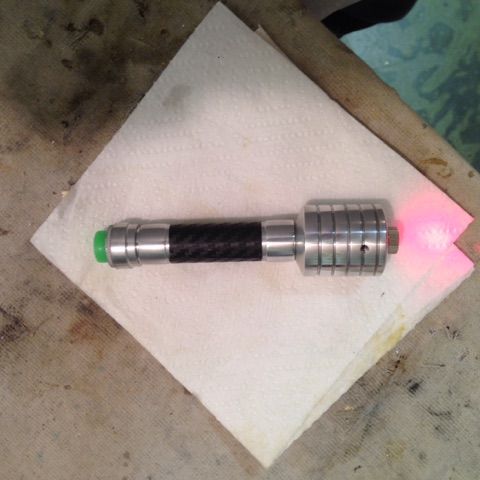

Clik here to view.[/IMG] 835 mw's that's not to bad for one 14500.Than I chose to put a green lens cap on the tail button to spice up the look a bit and the finished product is----[IMG]Image may be NSFW.
Clik here to view.[/IMG] Kinda cute.!! Hope you enjoy the read !
