"FRANKIE"
Image may be NSFW.
Clik here to view.
It lives! A charge from the ole electrodes, and Bam, good to go!
This project started out as six assorted host parts that were originally from two doner hosts that Len (Hakzaw) had given me along with a box of various other "goodies".
If you've ever bought anything, or dealt with Len, you know about his extras. :)
After speaking with Len, I learned that these nice brass hosts were donated to him by Chuck at AixiZ, and that they were the last of some old stock.
Len also left me with a question, can you come up withsomething which will work with a regular common size Li-Ion cell?
The original design looked as if it may have used a small 14250ish sized cell, and didn't lend itself in either length or inside diameter to a larger battery.
With a bit of trial & error, and a lot of part modifications, this little solid brass beauty came together pretty nicely!
With all of the modified and borrowed parts used, this host reminds me of "Frankenstein", but this little thing is too small and good looking to be called that, so I've dubbed it "Frankie". :yh:
Len is fond of this host because of it's hefty feel for its small size; it's constructed of very thick brass throughout.
I tried to maintain this feel in my modified version, so I machined a minimal amount out of it to accomodate a 14500 cell, still fairly small but a standard size, and enough for the 120mW 638nm diode that I used.
List of Components:
- Brass Host (Unknown Brand or Origin).
- Aluminum Heatsink.
- 14500 AW Battery
- Fiber Washer, Battery Contact Springs, Nylon Spring Guide.
- Opnext/Oclaro 120mW Single Mode 638nm Diode w/ Nano Buck/Boost Driver.
- Arctic Alumina Thermal Compound, & Arctic Alumina Thermal Adhesive.
Dimensions & Weight:
- 18.80mm Diameter.
- 122mm Length.
- 163g w/battery (5.75oz.)
Measured Power Output:
- 3 Element lens = 162mW.
- G-2 Lens = 230mW.
And now for some photos and descriptions of this project. :cool:
The beginning - What to make with it?

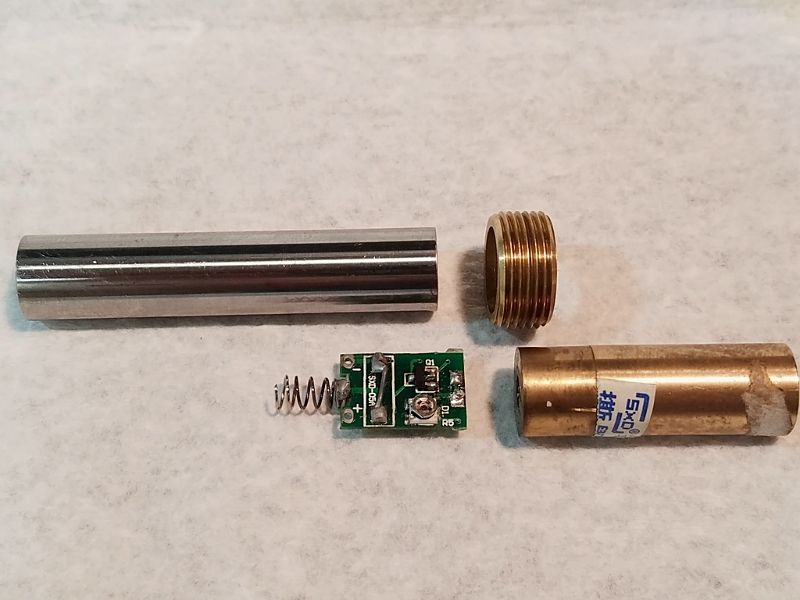

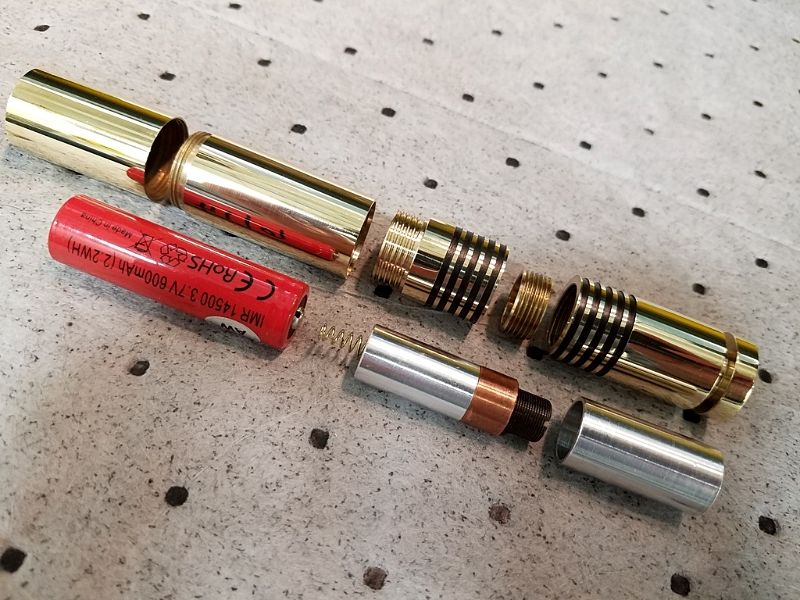

Pieces from both hosts, showing both ends of each piece.
Image may be NSFW.
Clik here to view.

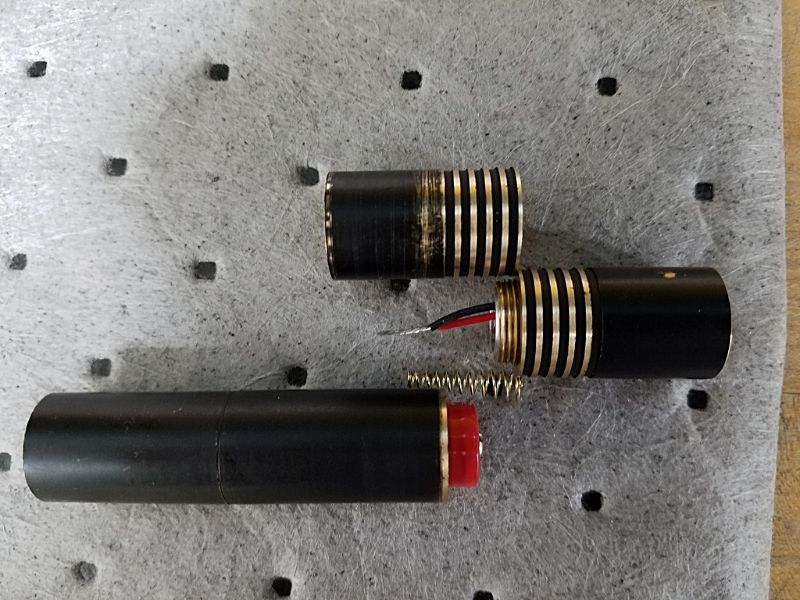

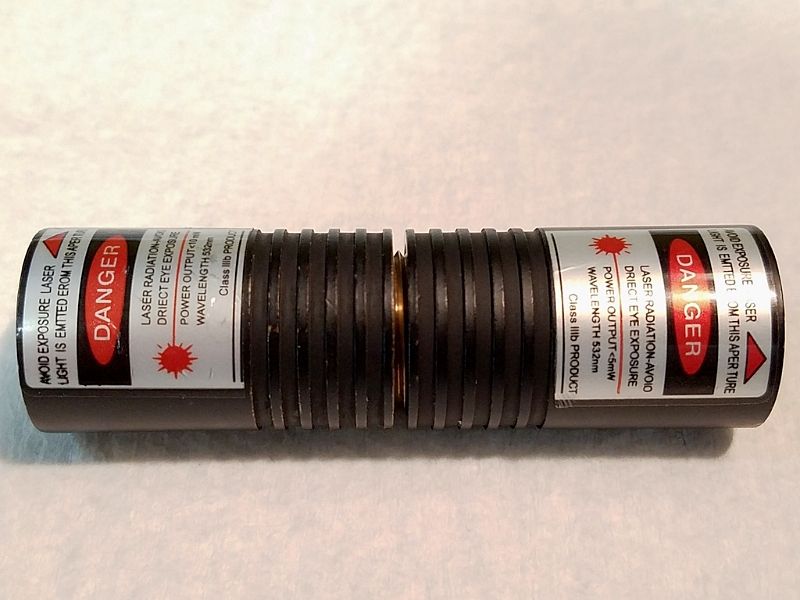

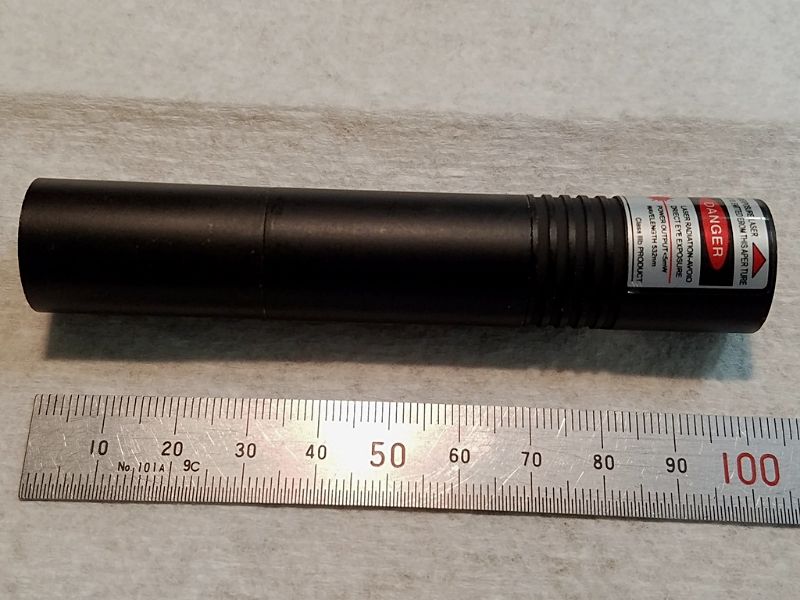

The original host (assembled), with scale for size.
Image may be NSFW.
Clik here to view.

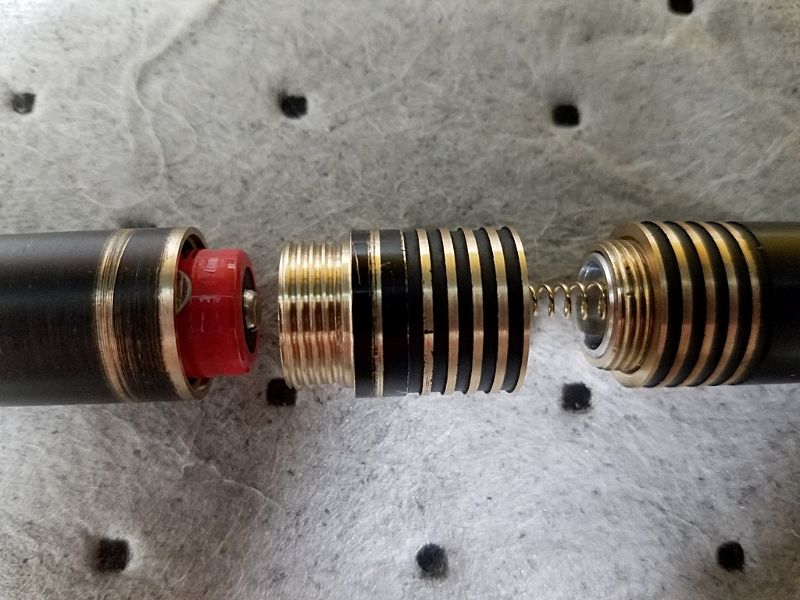

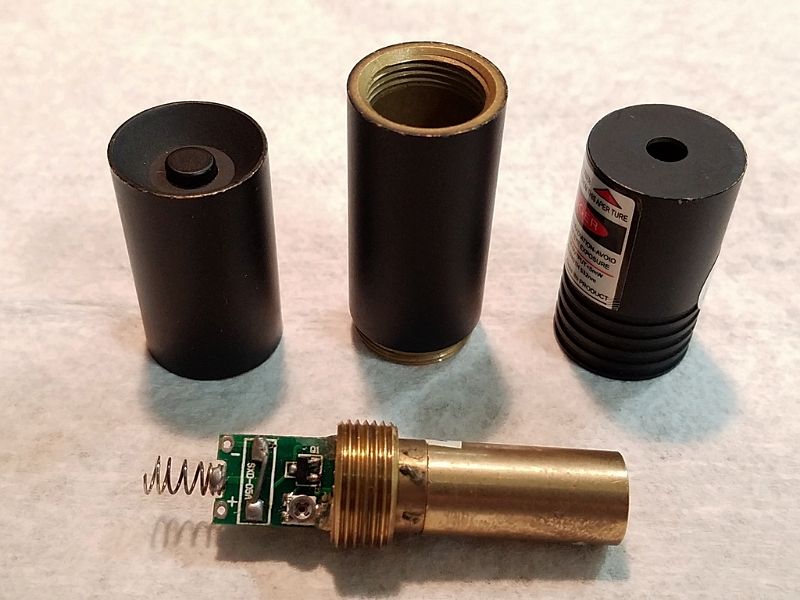

Disassembled, with the original driver/module.
Image may be NSFW.
Clik here to view.
I removed the driver and pressed off the threaded adapter which was epoxied on to the diode module so that I could save the adapter for re-use.
Image may be NSFW.
Clik here to view.

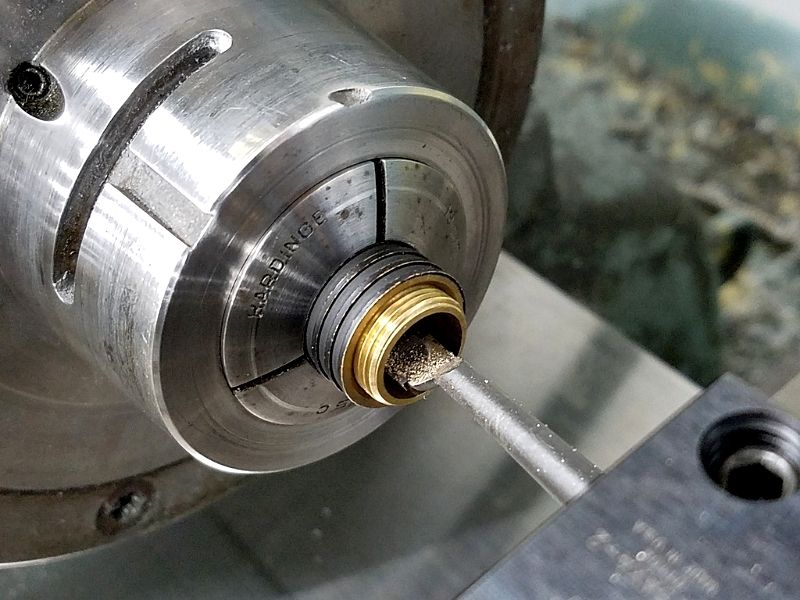

The adapter needed to be bored out to 12mm for a slip fit on the aluminum back half of DTR's module.
Image may be NSFW.
Clik here to view.

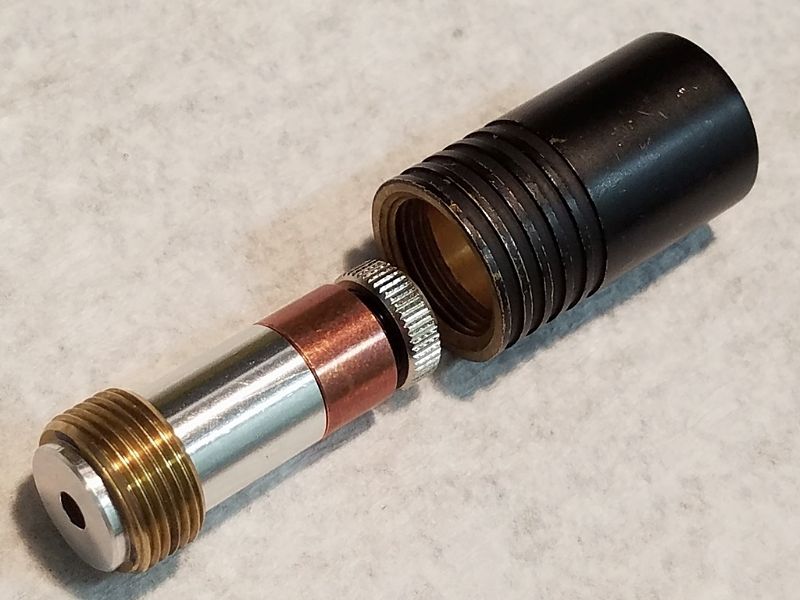

Complete module with fitted adapter shown as it fits into the front host piece.
Image may be NSFW.
Clik here to view.
Both of the hosts front pieces screwed back to back. The second piece will be modified to gain the needed extra length for the 14500 cell.
Image may be NSFW.
Clik here to view.
Preliminary positioning to determine length of extension.
Image may be NSFW.
Clik here to view.
Sized and threaded extension piece.
Image may be NSFW.
Clik here to view.

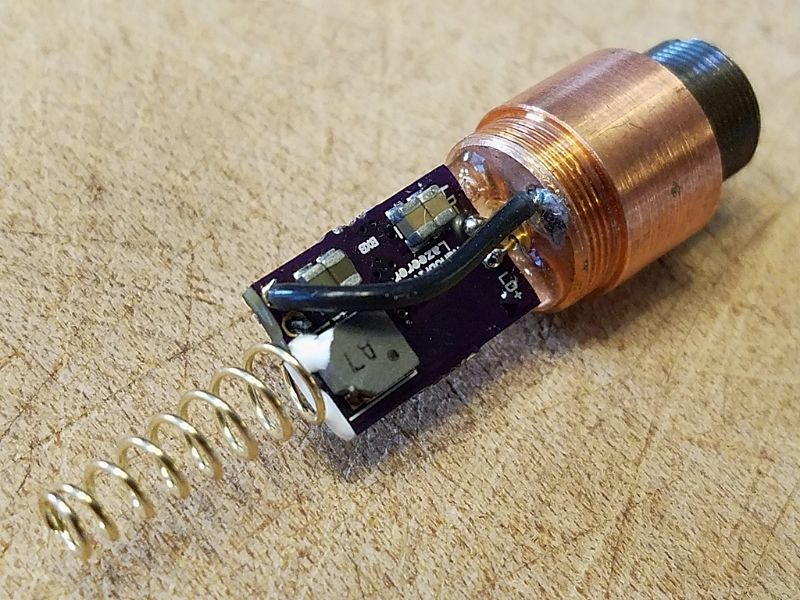

Diode and module with driver and added battery spring. Driver has been epoxied to module for stability.
Epoxy has also been added to protect spring from possible shorts on driver electrical connections.
Image may be NSFW.
Clik here to view.

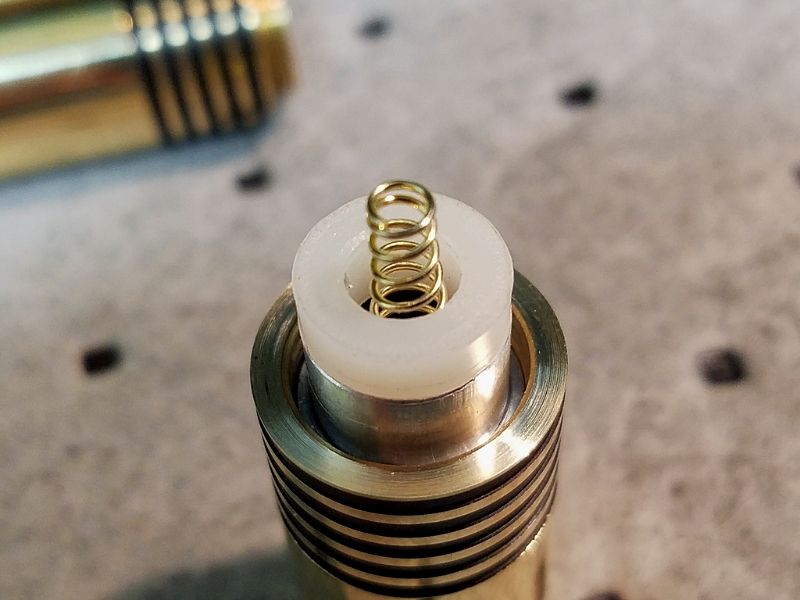

I've added a nylon sleeve to the shortened module to protect against shorting to the host battery tube.
Image may be NSFW.
Clik here to view.

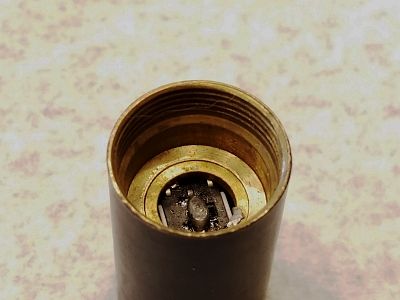

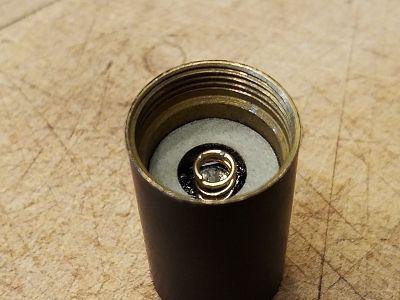

Original tail switch contact, and modded tail cap showing added battery contact spring and insulating washer.
Image may be NSFW.
Clik here to view.
Image may be NSFW.Clik here to view.
Disassembled tail cap and switch, in preperation for re-using it as a focus adapter. The original unit was fixed focus and had no focus abilities.
Image may be NSFW.
Clik here to view.

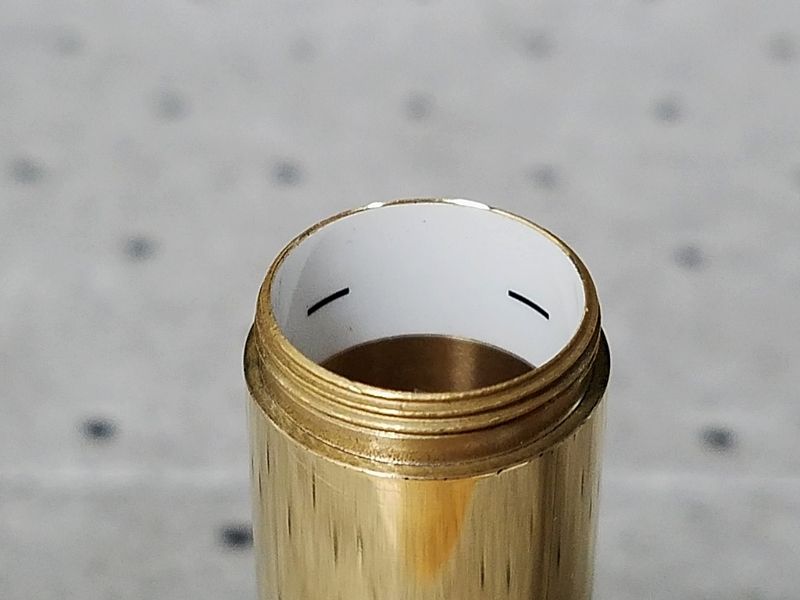

Rear end of battery tube showing label with proper polarity.
Image may be NSFW.
Clik here to view.

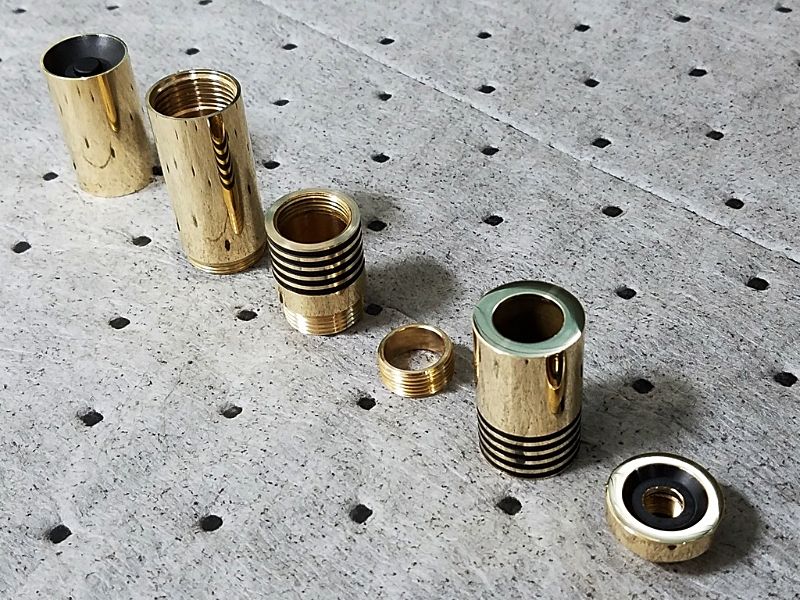

Finished and polished host components.
Image may be NSFW.
Clik here to view.
Image may be NSFW.
Clik here to view.

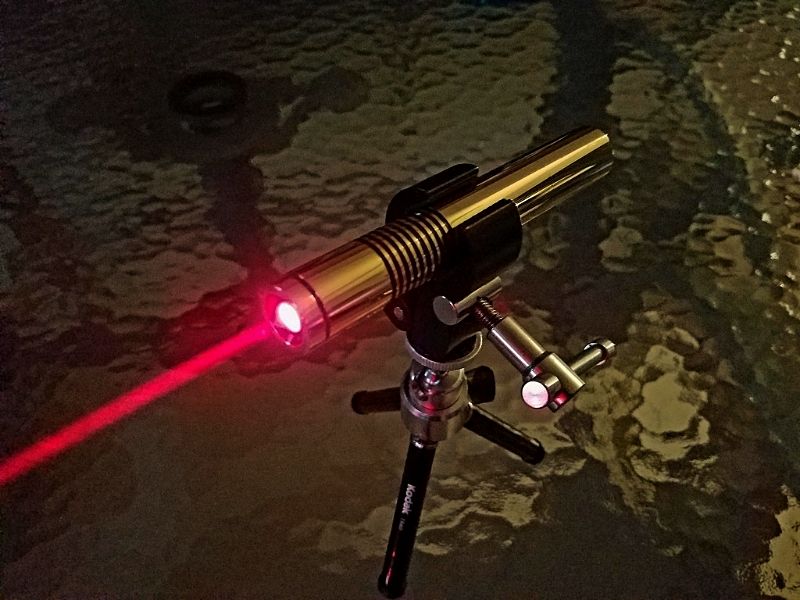

"Frankie" is finally finished.
Image may be NSFW.
Clik here to view.
Image may be NSFW.
Clik here to view.
Image may be NSFW.
Clik here to view.
Thanks to Len (Hakzaw) for the challenge, and the raw parts to start with! :beer:
Thanks also to Chuck at AixiZ for providing these units to Len; without him, this wouldn't have been possible.
Thanks again to DTR for another quality diode/module.
That's all folks, thanks for hanging in there! :D
Comments, suggestions, and critiquing all are welcome! :D
